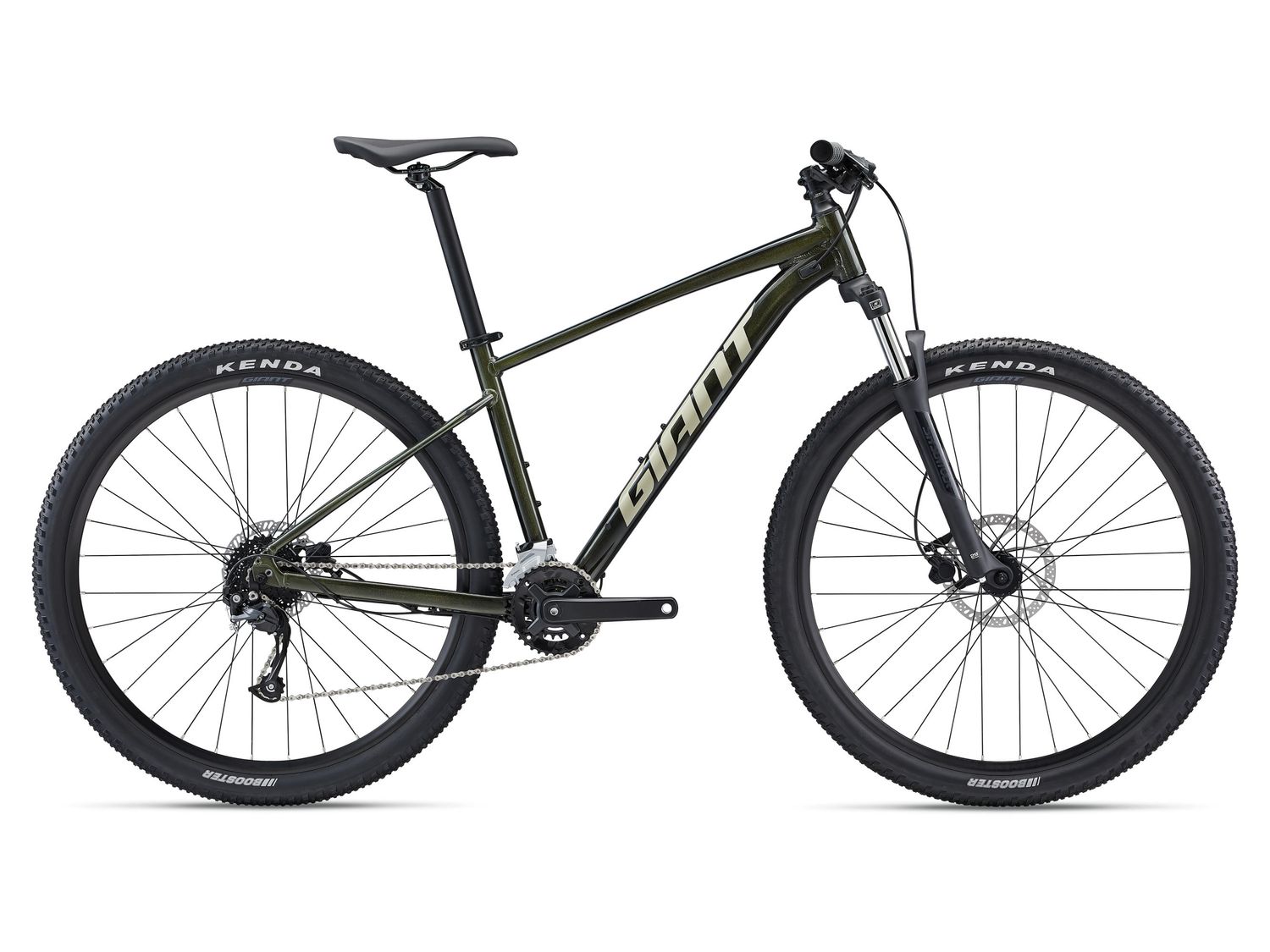

Push the pace on climbs, let loose on the descents. This aluminum hardtail gives you a feel for the trail with balanced, confident handling and a plush suspension fork.
ALUXX aluminum frameset is hand-built in-house by the world leader in aluminum engineering.
Frame geometry is designed to optimize the balance and roll-over capabilities of 29-inch wheels or the liveliness of 27.5-inch wheels (depending on frame size).
Suspension fork offers either 80mm or 100mm of smooth travel for added XC control.
Specifications
Sizes |
27.5: XS,S,M 29: S,M,L,XL,XXL |
Colours |
Knight Shield, Phantom Green, Metallic Black |
Frame |
ALUXX-Grade Aluminum, disc |
Fork |
SR Suntour XCM30, QR, steel steerer XS: 80mm travel (27.5) S: 80mm travel (27.5) / 100mm travel (29) |
Shock |
N/A |
Handlebar |
Giant Connect Trail, 31.8mm XS: 730mm (27.5) S: 780mm (27.5) / 780mm (29) M: 780mm (27.5) / 780mm travel (29) L: 780mm (27.5) / 780mm (29) XL: 780mm (29) XXL: 780mm (29) |
Grips |
Giant Sole-O |
Stem |
Giant Sport, 7-degree XS: 40mm (27.5) S: 50mm (27.5) / 50mm (29) M: 60mm (27.5) / 60mm travel (29) L: 70mm (27.5) / 70mm (29) XL: 80mm (29) XXL: 90mm (29) |
Seatpost |
Giant Sport, 30.9 XS: 300mm (27.5) S: 300mm (27.5) / 375mm (29) M: 375mm (27.5) / 375mm travel (29) L: 375mm (27.5) / 375mm (29) XL: 375mm (29) XXL: 375mm (29) |
Saddle |
Giant custom |
Pedals |
MTB caged |
Shifters |
Shimano Altus M2010, 2x9 |
Front Derailleur |
Shimano Altus M2020 |
Rear Derailleur |
Shimano Altus M2000 **some bikes may be substituted: Shimano Altus M370 |
Brakes |
Tektro HDC M275, hydraulic, Tektro rotors [F]180mm, [R]160mm |
Brake Levers |
Tektro HDC M275 |
Cassette |
Shimano Deore HG200, 11x32 |
Chain |
KMC X9 |
Crankset |
ProWheel forged, 22/36 XS: 165mm (27.5) S: 170mm (27.5) / 170mm (29) M: 170mm (27.5) / 175mm travel (29) L: 175mm (27.5) / 175mm (29) XL: 175mm (29) XXL: 175mm (29) |
Bottom Bracket |
cartridge |
Rims |
Giant GX03V 29 or 27.5, alloy, double wall, 21mm inner width |
Hubs |
alloy, sealed bearing |
Spokes |
stainless, 14g |
Tires |
Kenda Booster 27.5 or 29x2.2", wire bead |
Extras |
2.4" max tire size |
