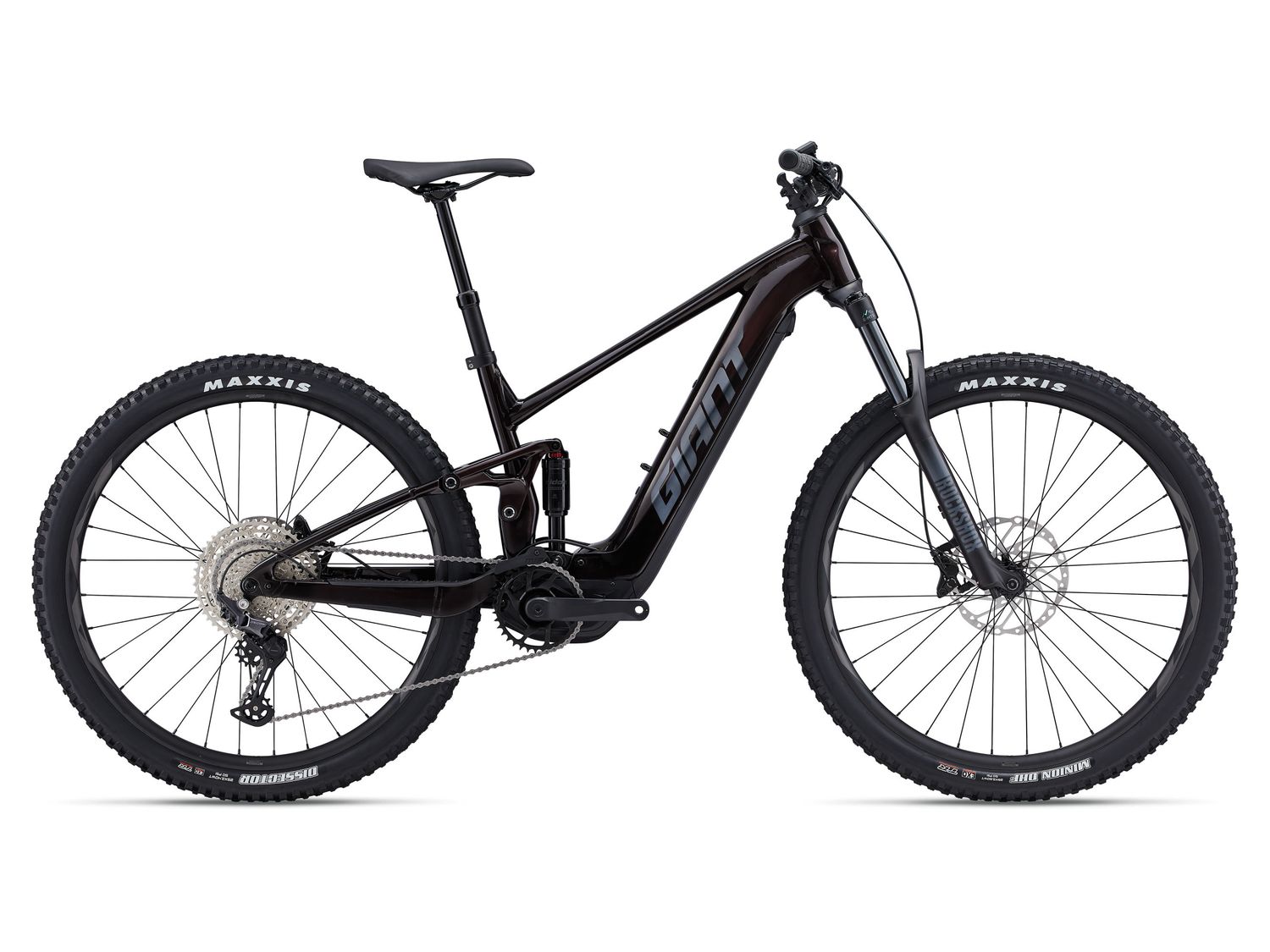

Ride trails with confidence, control and flat-out fun. This new E-bike has a powerful motor, plush suspension, and intuitive controls that can take your trail adventures to a whole new level.
The SyncDrive Pro motor with 85Nm of torque and 400 percent tunable support helps riders climb steep, rugged trails with greater ease.
ALUXX SL aluminum frame with 125mm travel FlexPoint rear suspension and larger diameter 29-inch wheels produces a smooth, stable ride on technical trails.
The new EnergyPak 800 offers the longest possible range. The integrated battery pack makes charging quick and easy.
Specifications
Motor |
Giant SyncDrive Pro2 85Nm, PedalPlus 6-Sensor technology |
Controller |
Giant RideControl Dash, Smart Assist automatic mode, 5 manual support levels, USB-C (10W) |
Display |
Giant RideControl Dash, high-angle visibility, full color LCD display |
Battery |
Giant EnergyPak 800Wh, 22700 Lithium cell technology, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production Giant EnergyPak Plus 250 range extender compatible |
Charger |
Giant EnergyPak 6A smart charger, 60% in 2:15h |
Connectivity |
Giant RideControl App enabled ANT+ wireless display signal with e-bike profile |
Sizes |
S, M, L, XL |
Colours |
Cordovan |
Frame |
ALUXX SL-grade aluminum, 1.5"~1.8" head tube,125mm travel FlexPoint suspension system, 'Boost' 148x12 UDH rear axle, EnergyPak Plus Range Extender Compatible |
Fork |
RockShox 35 Silver, 140mm, 1.8" tapered steerer, 110x15 Maxle Stealth |
Shock |
SR Suntour Raidon R, 190x45mm, recommended sag: 30% |
Handlebar |
Giant Connect TR Riser 31.8x780mm |
Grips |
Giant Tactal single lock-on |
Stem |
Giant Contact |
Seatpost |
Giant Contact Switch, dropper, 30,9mm (S:125/M:150/ L&XL:170) |
Saddle |
Giant Sport |
Pedals |
N/A |
Shifters |
Shimano Deore |
Front Derailleur |
MRP HD2 co-moulded chain guide |
Rear Derailleur |
Shimano Deore 12-speed |
Brakes |
Tektro HD-M750 Orion, 4-piston, hydraulic disc, 203mm |
Brake Levers |
Tektro HD-M745 Orion |
Cassette |
Shimano CS-M6100-12, 10-51T, 12-speed |
Chain |
KMC e.12 Turbo, EcoProteq, e-bike optimized |
Crankset |
FSA Comet E-Bike crank arm setFSA MegaTooth Direct-mount 1X steel 36T |
Bottom Bracket |
n/a |
Rims |
Giant AM30, Tubeless ready, 30mm inner width, 29" |
Hubs |
Shimano MT410 Boost, Center-Lock, [F] 110x15 [R] 148x12mm Micro-Spline Drive Body Thru-axle |
Spokes |
Sapim E-Lite [R] Race [F], e-bike optimized |
Tires |
Maxxis Minion DHF 29X2.50"" Foldable, TLR, EXO, 60TPI [F] Maxxis Dissector 29X2.40"" Foldable, WT, TLR, EXO, 60TPI [R] |
Extras |
Tubeless kit (liquid, valves, levers, manual, tool) |
Lock |
Torx 25 Battery Lock with built-in Torque limiter |
