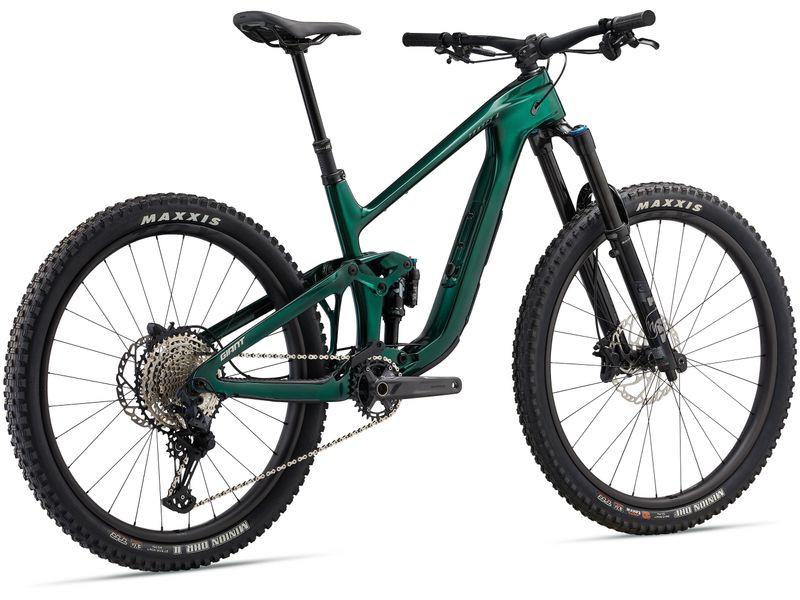

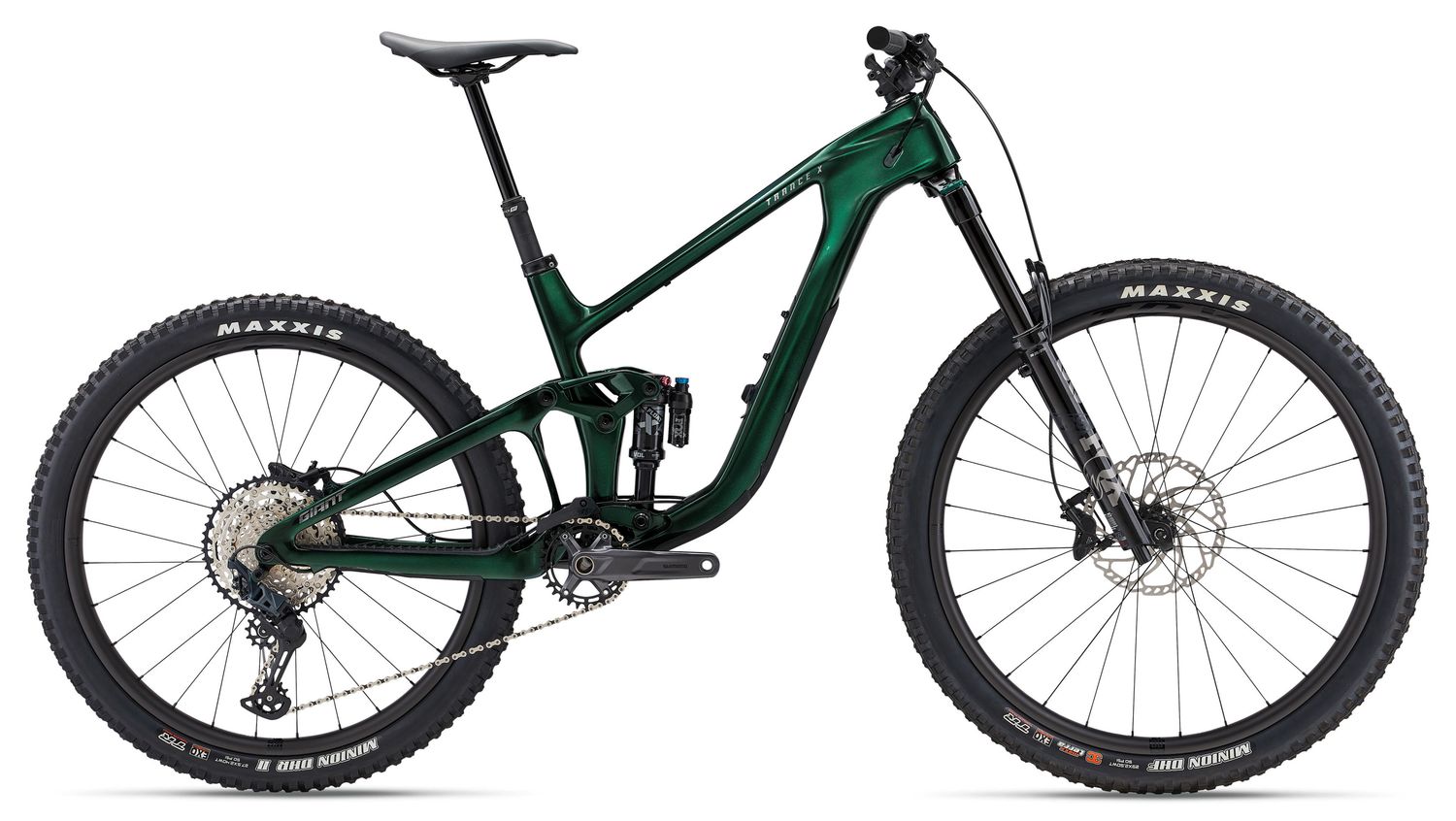

25 Trance X Advanced SX
C$6,499
Size
Color
Please choose
Show availability at pickup locations
If the product you want is not available at your preferred location, you can checkout the order in its existing location and just leave us a note as to where you would like to collect it!
In stock
1
Save this product for later

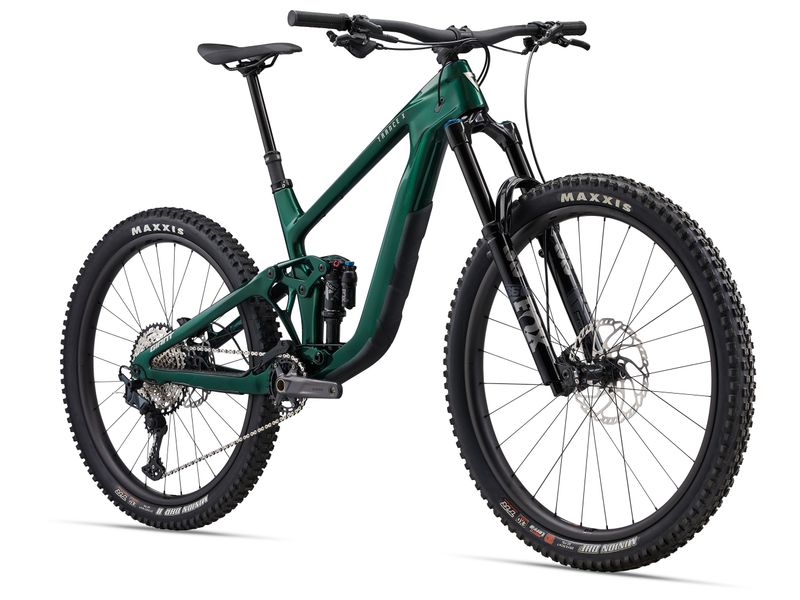

25 Trance X Advanced SX
Product Details
Rock rolls, sketchy drops and step-ups. This new full-composite trail machine handles it all with confidence and control. New longer travel Maestro rear suspension (145mm), adjustable geometry, and a mixed wheel setup make it a singletrack sensation.
Key Performance Factors
Updated suspension

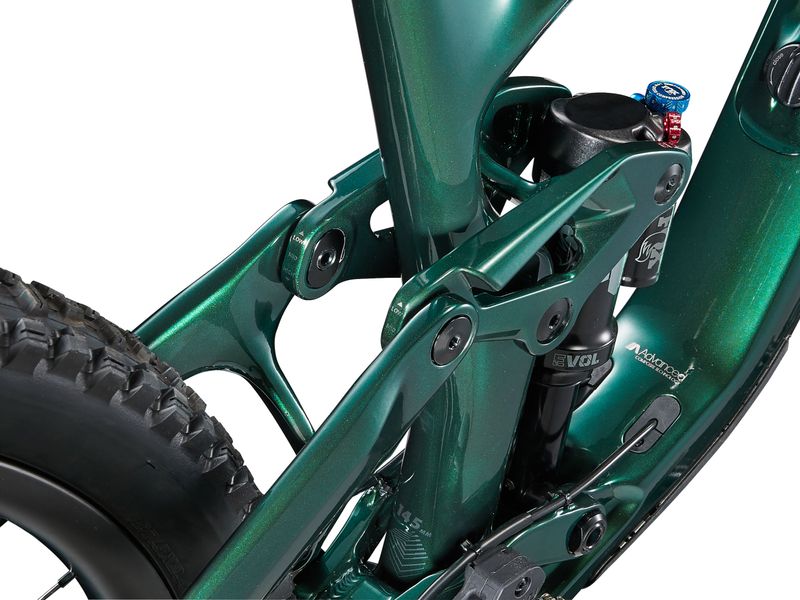

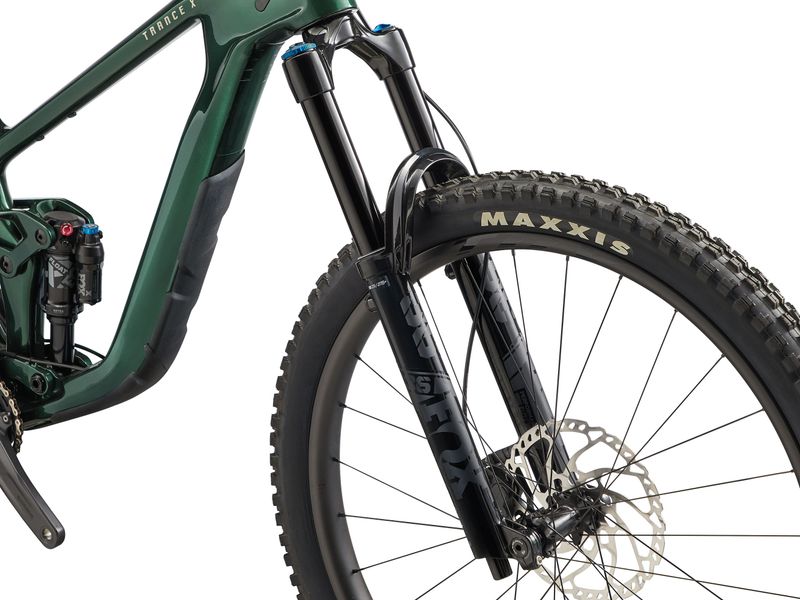

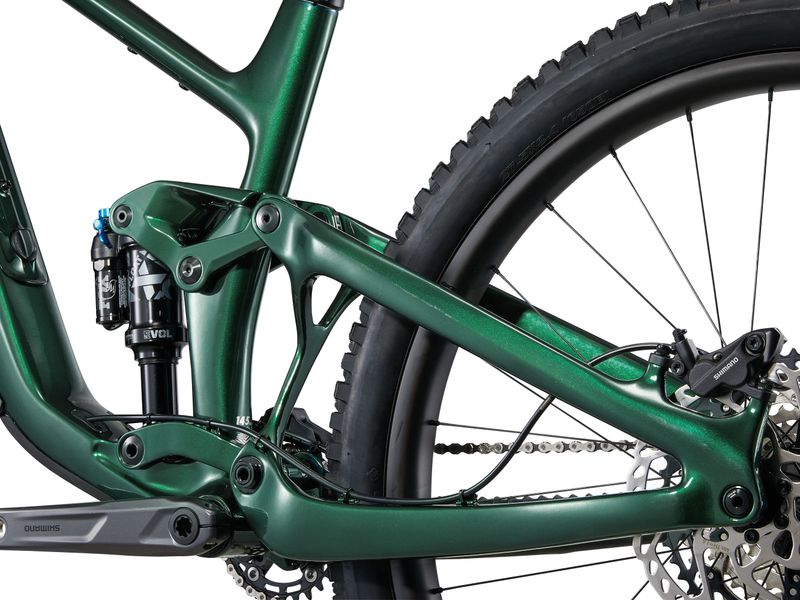

This “SX” series features an all-new Maestro rear suspension system with added travel (145mm) for technical singletrack. The trunnion mount shock and Advanced Forged Composite rocker arm combine for a longer stroke that has a smooth, active feel, plus greater stiffness in the chassis for improved tracking over rough terrain. The rear suspension is paired with a longer travel 160mm suspension fork, giving aggressive trail riders added confidence and control.
Adjustable trail geometry

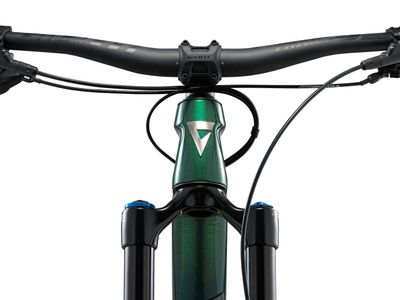

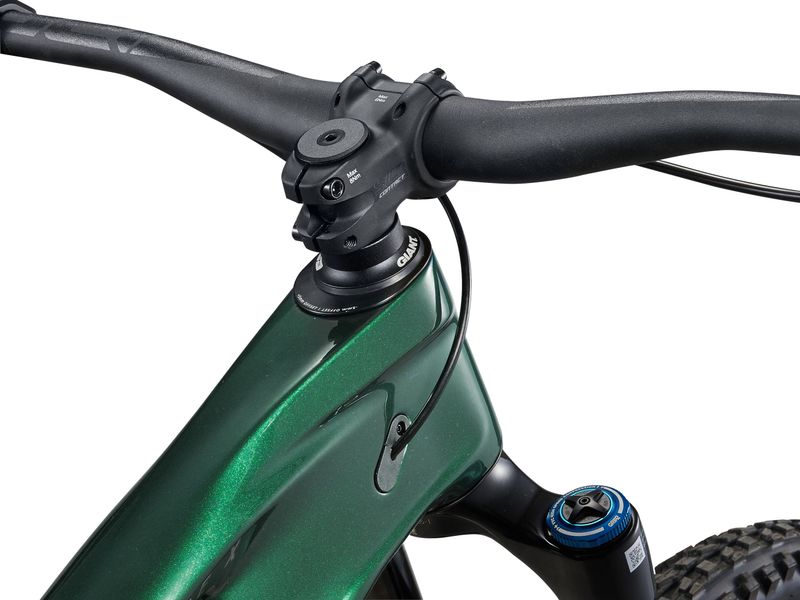

A three-position Maestro flip chip lets you dial in frame geometry to suit your riding style and terrain. The high setting adds more ground clearance, a good option for tight, technical singletrack. The low setting creates a slacker head angle and lower bottom bracket for confident handling at higher speeds. The middle position is neutral. In addition, a new headset flip chip provides 10mm of total reach adjustment.
Mixed wheel setup
This model comes with a 27.5-inch rear wheel. The smaller wheel diameter delivers an agile, snappy feel on the trail and more saddle-to-tire clearance in the rear. Riders typically favor this “mullet” setup for riding steep, technical terrain.
Specifications
|
Sizes |
S, M, L, XL |
|
Colours |
Kelp Forest/Chrome |
|
Frame |
Advanced-grade composite front and rear triangles, 145mm Maestro suspension, flip chip - Maestro 3, flip chip - headset, 12x148mm thru-axle, integrated downtube storage |
|
Fork |
Fox 36 Float Performance Elite, 160mm, GRIP 2 damper, 15x110 Kabolt X, 44mm offset |
|
Shock |
Fox Float X Performance Elite, two-position LSC adjust, 185/55, custom tuned for Giant |
|
Handlebar |
Giant Contact TR35, 20mm rise, alloy, 780x35mm |
|
Grips |
Giant Tactal Pro single lock-on |
|
Stem |
Giant Contact SL 35 S:40mm, M:40mm, L:50mm, XL:50mm |
|
Seatpost |

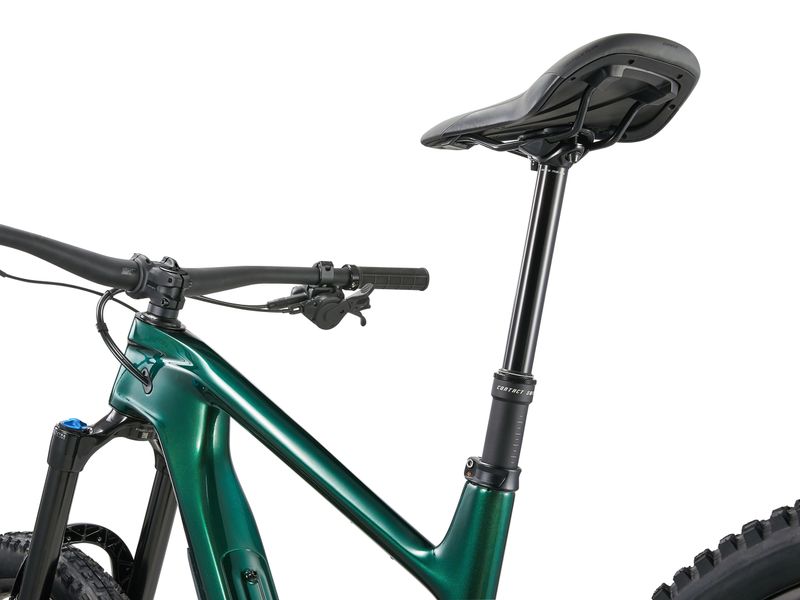

Giant Contact Switch Adjustable, remote S: 110-140mm travel / 30.9 x 395mm M: 140-170mm travel / 30.9 x 470mm L/XL: 170-200mm travel / 30.9 x 530mm |
|
Saddle |
Giant Romero SL |
|
Pedals |
N/A |
|
Shifters |
Shimano SLX M-7100, 1x12 |
|
Front Derailleur |
N/A |
|
Rear Derailleur |

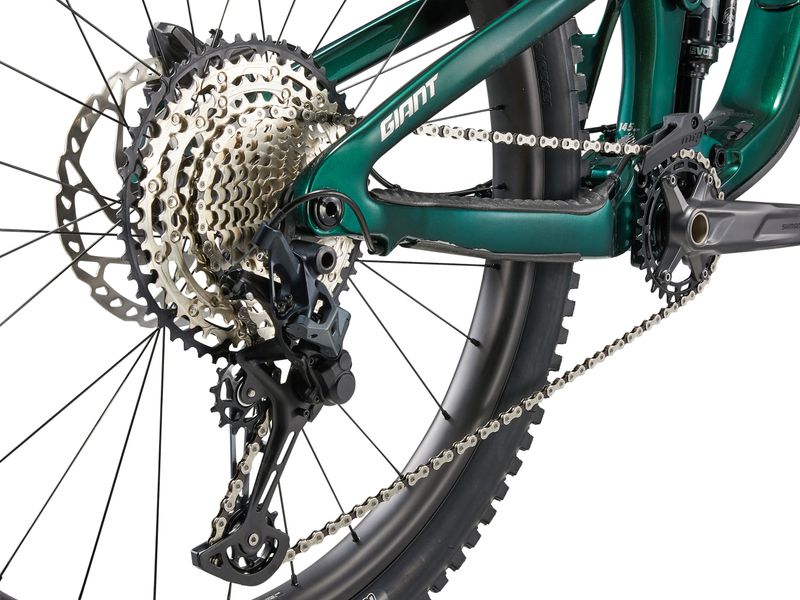

Shimano SLX M-7100 |
|
Brakes |
Shimano Deore BR-M6120, hydraulic, four piston, Shimano RT-66 rotors [F]203mm, [R]180mm |
|
Brake Levers |
Shimano Deore BL-M6100 |
|
Cassette |
Shimano SLX M7100, 10x51 |
|
Chain |
KMC X-12 |
|
Crankset |
Shimano MT512-1, 30t, 55mm chainline S:165mm, M:170mm, L:170mm, XL:170mm |
|
Bottom Bracket |
Shimano, press fit |
|
Rims |
Giant TRX WheelSystem, carbon rim, 30mm IW, 40mm OW, 21mm H, Wide Guard technology, [F] 29, [R] 27.5 |
|
Hubs |
[F] Giant MTB alloy, 6-bolt, sealed [R] Giant MTB alloy, 6 bolt, 72t POE, 6-pawl, sealed |
|
Spokes |
Sapim Laser straight pull, DBL technology |
|
Tires |
[F] Maxxis Minion DHF, 29x2.5 WT, 3C 60 tpi, MaxxTerra, EXO, TR [R] Maxxis Dissector 27.5x2.4 WT, 60 tpi, 3C MaxxTerra, TR, tubeless |
|
Extras |

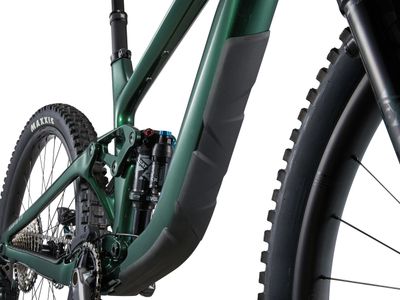

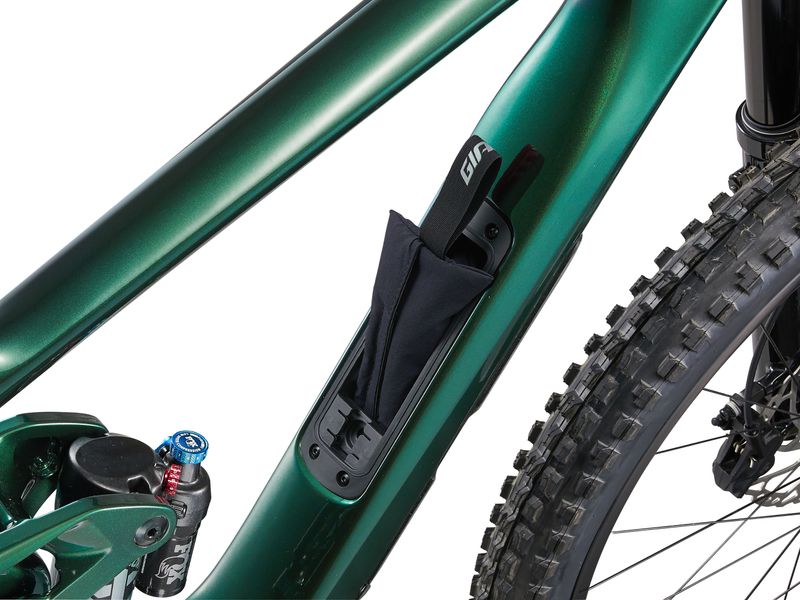

tubeless prepared, 2.5" max tire size, 36t max chainring size, 3M tailgate protector, integrated down tube storage bag |
