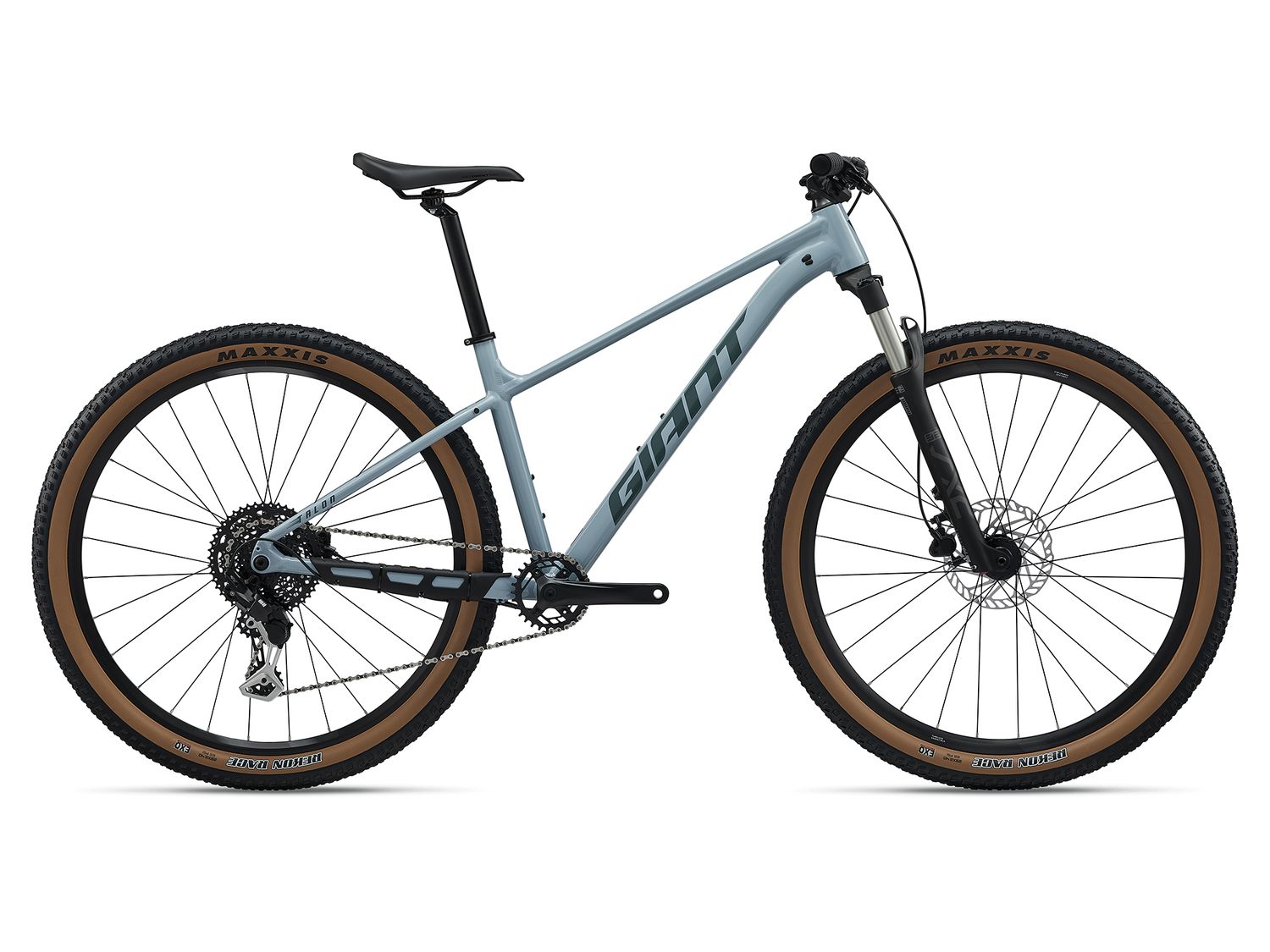

The mountain bike experience starts here. With a redesigned frame that’s now lighter and more durable, along with a smooth-riding suspension fork, thru-axle hubs*, and a 1x drivetrain*, this aluminum hardtail is everything an aspiring MTB rider needs to evolve and advance. *on select models.
Tapered fork steerer tubes*, quality components including a 1x drivetrain* with clutch-equipped rear derailleurs, thru-axle hubs*, internal cable routing (including dropper seatpost) and an integrated chainstay protector give aspiring trail riders room to grow. *on select models
New geometry is optimized for confident trail riding and two different wheel sizes (27.5 or 29-inch) depending on frame size. The geometry is also designed for front suspension with either an 80mm or 100mm fork depending on frame size. All models have clearance for high-volume tires (up to 2.4-inch) for traction and grip on technical terrain.
All-new ALUXX aluminum frame features updated shaping and a lighter overall weight for improved performance on off-road terrain.
| Sizes | 27.5: XS, S
29: S, M, L, XL |
| Colour | Dusty Blue, Silver/Black |
| Frame | ALUXX-grade aluminum, disc |
| Fork | Giant SXC32-2 RL, air spring, 1.5" tapered steel steerer, 15x110mm thru-axle
XS,S: 80mm (27.5) S,M,L,XL: 100mm (29) |
| Shock | N/A |
| Handlebar | Giant Connect Trail, 31.8mm |
| Grips | Giant Sole-O |
| Stem | Giant Sport, 7-degree |
| Seatpost | Giant Sport, 30.9 |
| Saddle | Giant ErgoContact Trail |
| Pedals | N/A |
| Shifters | microSHIFT Advent, 1x11 |
| Front Der. | N/A |
| Rear Der. | microSHIFT Advent MX RD-M7015M, with clutch |
| Brakes | Tektro HD M3221, hydraulic
Tektro rotors [F]180mm, [R]160mm |
| Brake Levers | Tektro HD M3121 |
| Cassette | microSHIFT Advent MX, 11-speed, 11x50 |
| Chain | KMC X11 |
| Crankset | ProWheel Charm, [27.5] 32t, [29] 30t, 52.5mm chainline |
| Bottom Bracket | cartridge |
| Rims | Giant TLR, 27.5 or 29, alloy, sleevejoint, tubeless compatible, 21mm IW |
| Hubs | alloy, sealed bearing, [F] 15x110 thru-axle, [R] 12x142 thru-axle |
| Spokes | stainless, 14G |
| Tires | Maxxis Rekon 27.5x2.4" or Maxxis Rekon Race 29x2.4", 60 TPI, wire bead |
| Extras | 2.4" max tire size, max chainring 32t |
