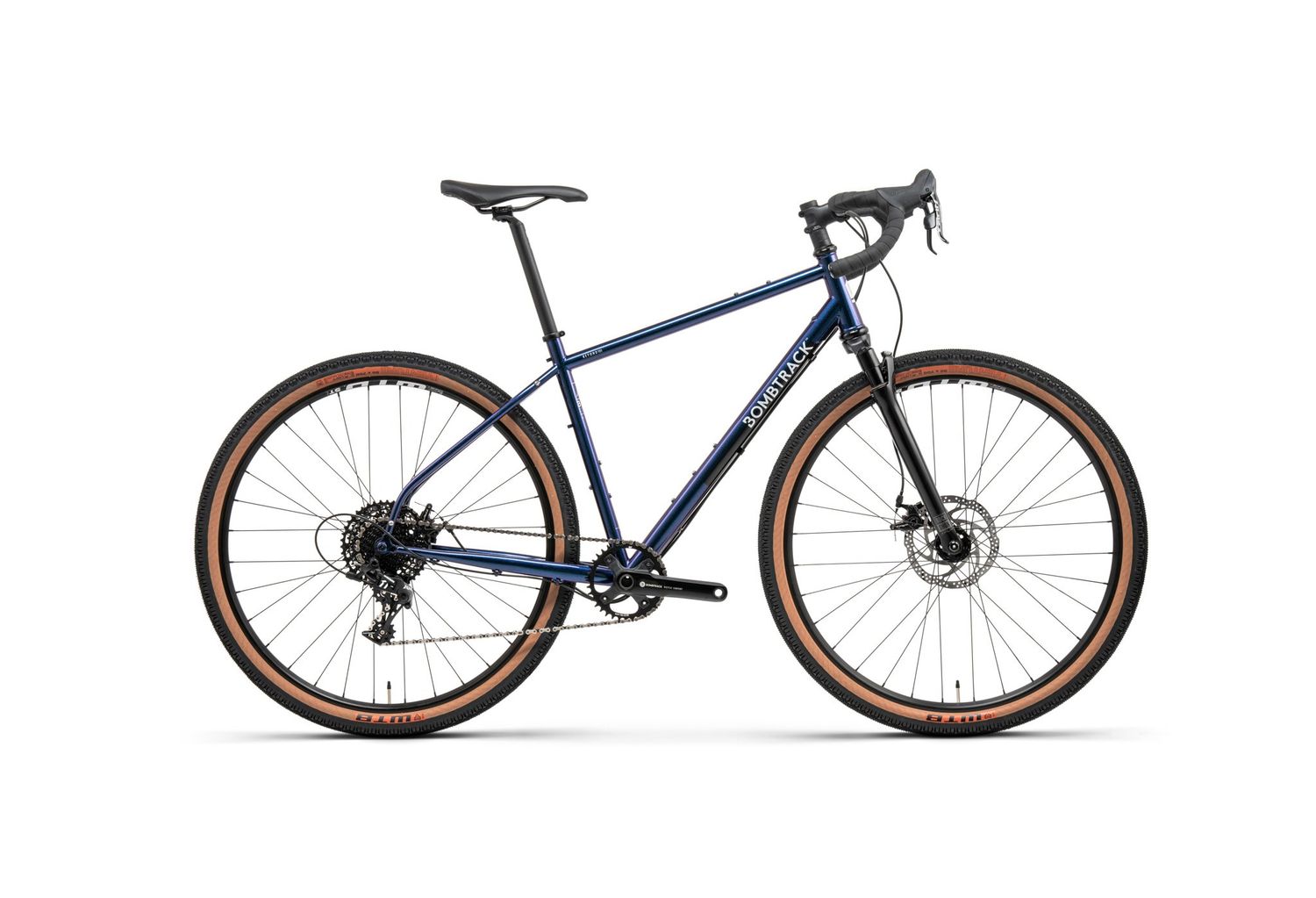

Thanks to the RockShox Rudy suspension fork, no surface will shake, rattle, or roll you while riding the Beyond SUS. The frame features top tube mounts, triple cage mounts on the downtube and even underneath, so you can fit your cargo in your desired configuration. The Sram Apex 1x11 groupset provides the power, thanks to a generous 11 – 42T cassette. Tubeless-ready WTB ST i23 rims with WTB Venture Light tyres roll fast and smooth, while Bombtrack Tau 12mm through-axle hubs means you will tackle trail-side repairs in a flash.
Specifications
Color 1
Glossy Metallic Midnight Blue
Color 2
-
Frame
4130 double butted crmo, TA, rack / fender mounts, internal light cable routing, 73 mm BSA BB shell
Fork
ROCKSHOX RUDY suspension fork, 1.1/2" - 1.1/8", 40 mm travel
Handlebar
SEIDO TACKLE gravel bar, 31.8 mm, 25° flare
Grips
BOMBTRACK COMMAND bar tape
Stem
BOMBTRACK TRAMP forged aluminium stem, 3°
Headset
Sealed external aheadset, 1.1/2'' - 1.1/8''
Levers
SRAM Apex double tap mechanic
Shifter
SRAM Apex double tap 1 x 11
Brakes
TRP SPYRE C mechanic disc brakes with 180 mm F / 160 mm R rotors
Crankset
BOMBTRACK AMES forged aluminium crank, 24 mm spindle
BB
BSA sealed BB, external cups
Pedals
-
Chain
KMC X11 chain, 1/2'' x 11/128'', 114L
Chainring
Steel, narrow-wide, 36 T
Cassette
SRAM PG-1130 11-speed, 11 - 42 T
Front derailleur
-
Rear derailleur
SRAM APEX 1, clutch, long cage
Front hub
BOMBTRACK TAU sealed hub, 6-bolt disc
Rear hub
BOMBTRACK TAU sealed hub, 11-speed, 6-bolt disc
Through axle
12 x 100 mm / 12 x 142 mm
Front rim
WTB ST i23 double wall, TCS 2.0, 32h
Rear rim
WTB ST i23 double wall, TCS 2.0, 32h
Saddle
BOMBTRACK FUZZ
Seat post
SEIDO BEECH 27.2 mm x 415 mm
Seat clamp
BOMBTRACK PRIME 29.8 mm
Front tyre
WTB VENTURE TCS LIGHT / FAST ROLLING XS - S 650B x 47C /
M - XL 700C x 50C, tubeless ready
Rear tyre
WTB VENTURE TCS LIGHT / FAST ROLLING XS - S 650B x 47C /
M - XL 700C x 50C, tubeless ready
Fender
-
Rack
-
Kickstand
-
Light
-
Weight
12.25 kg (size M)
Weight frameset
2540 g frame (size M, incl. TA, bolts, seatclamp, hanger) / TBA g fork (300 mm steerer, incl. TA)
