Surly Grappler
C$2,699
A Trail Bike Tailored for Drop Bars
Size
Color
Please choose
Show availability at pickup locations
If the product you want is not available at your preferred location, you can checkout the order in its existing location and just leave us a note as to where you would like to collect it!
In stock
1
Save this product for later

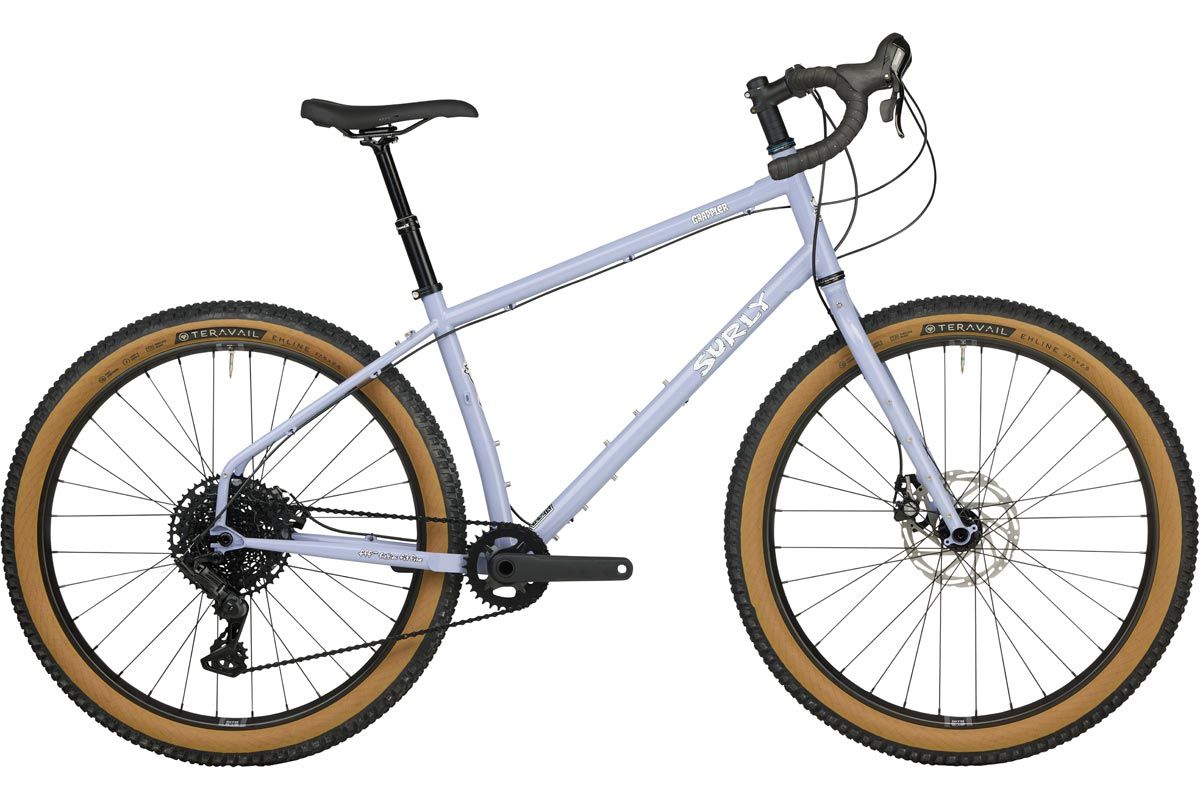

Surly Grappler
Product Details
Grappler is a drop-bar trail bike built for single-track sessions, all-day dirt rides, and bikepacking excursions.
Off-road enthusiasts have been Frankensteining drop bars onto trail bikes for decades, so we designed the Grappler to scratch that itch with a little more precision. Engineered first and foremost around a stable and comfortable drop-bar hand position, its trail-ready geo provides a spirited ride on mixed terrain.
Cleared for girthy tires and decorated with an array of mounts for hauling your daily provisions and overnight gear, the Grappler is ready to take you and your paraphernalia down that overgrown fire road for an extrasensory experience. There’s nothing to be afraid of. Probably.
- Featuring Surly’s versatile Gnot-Boost spacing, allowing riders to run 142mm or Boost 148mm rear hubs; thru-axles; stealth dropper post routing; non-suspension corrected
- Custom dropouts ready to run single-speed or internally geared hub setups
- Seatstay-mounted bottle bosses, plus three-pack mounts at the top and bottom of the down tube
- Clearance for 27.5 x 2.8” or 29 x 2.1" tires (with or without fenders)
Specifications
|
Frame |
100% Chromoly Steel frame, Natch tubing, double-butted main triangle, TIG welded, E.D. coated |
|
Fork |
Surly Dinner Fork |
|
Seatpost Clamp |
Surly Stainless 33.1 |
|
Headset |
Cane Creek 40 |
|
Brake Calipers |
Tektro Mira |
|
Brake Levers |
microSHIFT AdventX |
|
Rotors |
Tektro 180/160 |
|
Shifters |
microSHIFT AdventX |
|
Stem |
Promax DA-296, 31.8mm |
|
Handlebar |
Salsa Cowchipper |
|
Grip/Tape |
Black Cork |
|
Saddle |
WTB Volt |
|
Seatpost |
TranzX YSP15, 30.9, 100mm travel |
|
Crankset |
Samox, 32t |
|
Bottom Bracket |
Samox BSA |
|
Front Derailleur |
N/A |
|
Rear Derailleur |
microSHIFT ADVENT X |
|
Cassette |
microSHIFT ADVENT X, 11-48t, 10-spd |
|
Chain |
KMC X10 |
|
Front Hub |
Novatec 15 x 110mm, 6-bolt, 32h |
|
Rear Hub |
Novatec 12 x 148mm, 6-bolt, 32h |
|
Rims |
WTB ST i40 TCS 2.0 |
|
Tires |
Teravail Ehline, 27.5 x 2.5", Light and Supple, Tan Sidewalls |
|
Complete Bike Weight |
30 lb 5 oz. for Medium |
